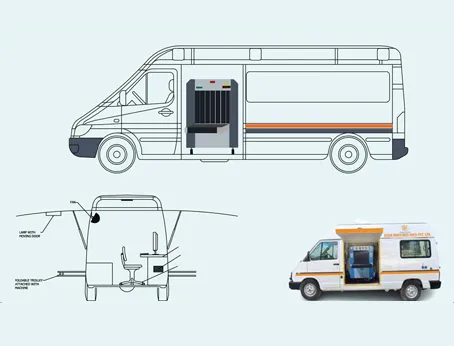

Gujar Industries India Pvt. Ltd. G-scan 6040 VM. Portable X-Ray baggage inspection system Is a highly effective and perfectly Engineered machine for maintaining safety and security at remote places, Mobile Vehicle Mounted X-Ray baggage inspection system Ensures The accurate inspectio n of any metal threat as well as Organic and Non-Organic Materials. The vehicle-mounted X-ray baggage Scanning system is popular with 6040 size XBIS. This System is highly popular for its functionality in public functions, Public Events, government speeches, and VIP Events, these scanning systems provide flexibility as they can be moved to any place and work effectively due to their rigid and robust design.
Application
Police And Paramilitary, Defense Establishments, VIP Security, Event Security.
Technical Specification
| 1 |
Inspection Tunnel (mm) |
600 x 400 mm |
| 2 |
Maximum Conveyor Load (kg) |
160 kg |
| 3 |
Product Weight (kg) |
600 kg |
| 4 |
Dimensions (mm) |
1300x910x2000 mm |
| Electrical |
| Power Supply |
230 VAC, 50 Hz |
| Power Consumption |
1 KVA |
| Current |
1.2 mA |
| Anode Woltage |
MAX 160 |
| Wire Resolution |
38AWG/42SWG |
| Storage |
| Operating Temperature |
0oC to 60oC |
| Storage Temperature |
-20oC to 70oC |
| Humidity |
98% |
| Noise Level |
55 db |
| Protection Class |
IP 43 |
| Other |
| Product Mobility |
Caster Wheels |
| System Access |
4 level if access |
| Network Applications |
Option Available |
| Product Body |
Steel with Powder
Coated |
| System |
| Computer Monitor Size |
22 inch |
| Computer Specification |
Latest |
| Operating System |
Windows |
| Image Resolution |
1280 X 1024 pixels |
| X-ray |
| Beam Direction |
Bottom |
| X-ray Radiation Leakage |
0.1 mR/hour |
| X-ray Converter |
L Shaped Photo Diode Array |
| Convyor |
| Conveyor Speed |
0.2m/sec |
| Conveyor Height |
700 mm |
