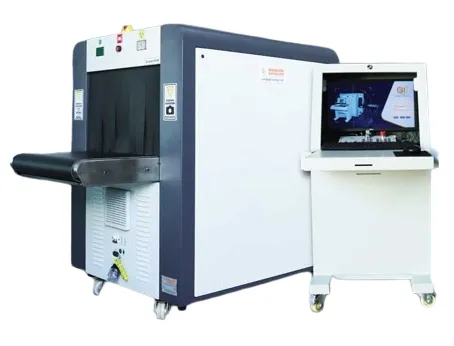

Gujar Industries India Pvt Ltd G-scan 6550 3D isometric view X Ray Baggage inspection machine, has a tunnel size of 650 mm by 500 mm and can scan objects higher than standard size. G-scan 6550 3D isometric view is an advanced x-ray machine with features such material detection, High resolution image, international quality standards, Robust design, High load bearing capacity and precise threat scanning. Having a capacity to scan 3D and get isometric view makes G-scan 6550 3D isometric view x-ray Airport baggage scanner manufacturers in India system an edge over others.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Technical specification X Ray Baggage Scanners G-Scan 6550 DV
| 1 |
Inspection Tunnel (mm) |
650 x 500 mm |
| 2 |
Maximum Conveyor Load (kg) |
160 kg |
| 3 |
Product Weight (kg) |
600 kg |
| 4 |
Dimensions (mm) |
1410x960x1170 mm |
| Electrical |
| Power Supply |
230 VAC, 50 Hz |
| Power Consumption |
0.5 KVA |
| Current |
1.2 mA |
| Anode Woltage |
MAX 160-200 kv |
| Wire Resolution |
38AWG/42SWG |
| Storage |
| Operating Temperature |
0oC to 60oC |
| Storage Temperature |
-20oC to 70oC |
| Humidity |
98% |
| Noise Level |
55 db |
| Protection Class |
IP 43 |
| Other |
| Product Mobility |
Caster Wheels |
| System Access |
4 level if access |
| Network Applications |
Option Available |
| Product Body |
Steel with Powder
Coated |
| System |
| Computer Monitor Size |
22 inch |
| Computer Specification |
Latest |
| Operating System |
Windows |
| Image Resolution |
1280 X 1024 pixels |
| X-ray |
| Beam Direction |
Bottom |
| X-ray Radiation Leakage |
0.1 mR/hour |
| X-ray Converter |
L Shaped Photo Diode Array |
| Convyor |
| Conveyor Speed |
0.2m/sec |
| Conveyor Height |
700 mm |
