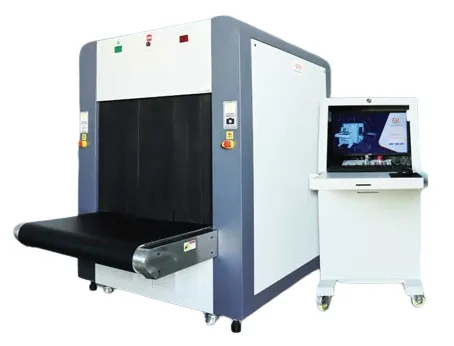

Gujar Industries India Pvt. Ltd. G-scan 10080 x ray baggage inspection machine is an ideal solution for inspection of heavy baggage. An ideal solution for threat detection in passengers baggage. Threat detection in large boxes, cargo or passengers baggage everything is made easy with our powerful G-scan 10080.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Technical specification X Ray Baggage Scanners G-Scan 6550 DV
| 1 |
Inspection Tunnel (mm) |
1000 x 800 mm |
| 2 |
Maximum Conveyor Load (kg) |
200 kg |
| 3 |
Product Weight (kg) |
800 kg |
| 4 |
Dimensions (mm) |
1880x1400x2990 mm |
| Electrical |
| Power Supply |
230 VAC, 50 Hz |
| Power Consumption |
1 KVA |
| Current |
1.2 mA |
| Anode Woltage |
MAX 160-200 kv |
| Wire Resolution |
38AWG/42SWG |
| Storage |
| Operating Temperature |
0oC to 60oC |
| Storage Temperature |
-20oC to 70oC |
| Humidity |
98% |
| Noise Level |
55 db |
| Protection Class |
IP 43 |
| Other |
| Product Mobility |
Caster Wheels |
| System Access |
4 level if access |
| Network Applications |
Option Available |
| Product Body |
Steel with Powder
Coated |
| System |
| Computer Monitor Size |
22 inch |
| Computer Specification |
Latest |
| Operating System |
Windows |
| Image Resolution |
1280 X 1024 pixels |
| X-ray |
| Beam Direction |
Bottom |
| X-ray Radiation Leakage |
0.1 mR/hour |
| X-ray Converter |
L Shaped Photo Diode Array |
| Convyor |
| Conveyor Speed |
0.2m/sec |
| Conveyor Height |
620 mm |
